RUCKUS Networks ZoneFlex R700
The Industry's Highest Capacity, Highest Performing Three-stream ZoneFlex R700 802.11ac Smart Wi-Fi Access Point for Carriers and Enterprises

RUCKUS ZoneFlex R700

This product is no longer available, contact us for a replacement!

Accessories and support are still available below. Please click here for pricing.

Please Note: All prices displayed are Ex-VAT. 20% VAT is added during the checkout process.

Overview:

The Industry's Highest Capacity, Highest Performing Three-Stream 802.11ac AP

RUCKUS ZoneFlex R700 is the first dual-band, three-stream 802.11ac access point that incorporates RUCKUS-patented BeamFlex+ adaptive antenna arrays.

The ZoneFlex R700 ensures the most reliable connectivity within challenging and ever-changing RF environments. With BeamFlex+, the ZoneFlex R700 offers up to 2x increase in performance and range and is capable of delivering up to 6 dB of signal-to-interference-plus-noise (SINR) improvement and up to 15 dB of interference mitigation over other APs. The ZoneFlex R700 simultaneously supports spatial multiplexing and BeamFlex+ to deliver the best price/performance of any three-stream 802.11ac AP.

With a throughput of 450 Mbps (2.4GHz) and 1300 Mbps (5GHz), the ZoneFlex R700 ensures maximum throughput to three-stream capable clients while also improving single and dual-stream client performance. This is achieved through the unique combination of adaptive antenna technology, predictive channel selection and adaptive polarization diversity. Backward compatible with all existing clients, the ZoneFlex R700 can function either as a standalone AP or as part of centrally-managed Wireless LAN with the RUCKUS ZoneDirector Smart WLAN controller.

ZoneFlex R700 is purpose-built for high-capacity, high performance and interference-laden environments such as airports, public venues, hotels, universities and conference centers. The perfect choice for data-intensive streaming multimedia applications, the ZoneFlex R700 delivers picture perfect HD-quality IP video while supporting VoIP and data applications that have stringent quality of service requirements.

Patented BeamFlex+ technology extends signal range, improves stability of client connections

The ZoneFlex R700 integrates a patented software-controlled adaptive antenna array that delivers additional signal gain per radio chain. As BeamFlex+ adapts to client locations and antenna polarity, the smart antenna array optimizes the RF energy toward client on a per packet basis. This allows for up to 2x improvement in signal range and a reduction in packet loss from the ability to automatically mitigate interference and obstacles. By combining BeamFlex+ with the transmit-based beamforming, the ZoneFlex R700 is capable of delivering up to 6 dB of SINR gain while offering concurrent support for spatial multiplexing.

Adaptive polarization diversity for unmatched reception of mobile client signals

In dynamic indoor and urban Wi-Fi environments device orientation constantly changes. This affects the polarization of the transmissions. Traditional Wi-Fi antennas are static in nature and only listen using one polarization. This prevents them from capturing the full signal from mobile client devices. The RUCKUS R700 listens in all polarizations simultaneously. This results in up to 2x (4 dB) receive signal gain from mobile devices with weak transmitters.

Advanced WLAN applications with Smart/OS

When used with the RUCKUS ZoneDirector Smart WLAN controller, the ZoneFlex R700 supports a wide range of value-added applications such as guest networking, Dynamic PSK, hotspot authentication, wireless intrusion prevention and many more. WLANs can also be grouped and shared by specific APs. In a centrally managed configuration, the ZoneFlex R700 works with various authentication servers including AD, LDAP, and RADIUS.

Features:

Ultra high performance and cost effective

Three-stream MIMO 3x3:3
Concurrent dual-band (5GHz/2.4GHz) support
450 Mbps of user throughput per radio (2.4 GHz) and 1300 Mbps (5 GHz)
Up to 6dB of signal-to-interference and noise (SINR) improvement and up to 15dB of interference mitigation
Transmit beamforming capable
Capable of supporting over 500 clients
Novel channel selection approach delivering up to 50 percent capacity gain over alternative background scanning approaches

Adaptive antennas and Automatic interference mitigation

Up to 2 times extended range and coverage
Automatic interference mitigation, optimized for high-density environments

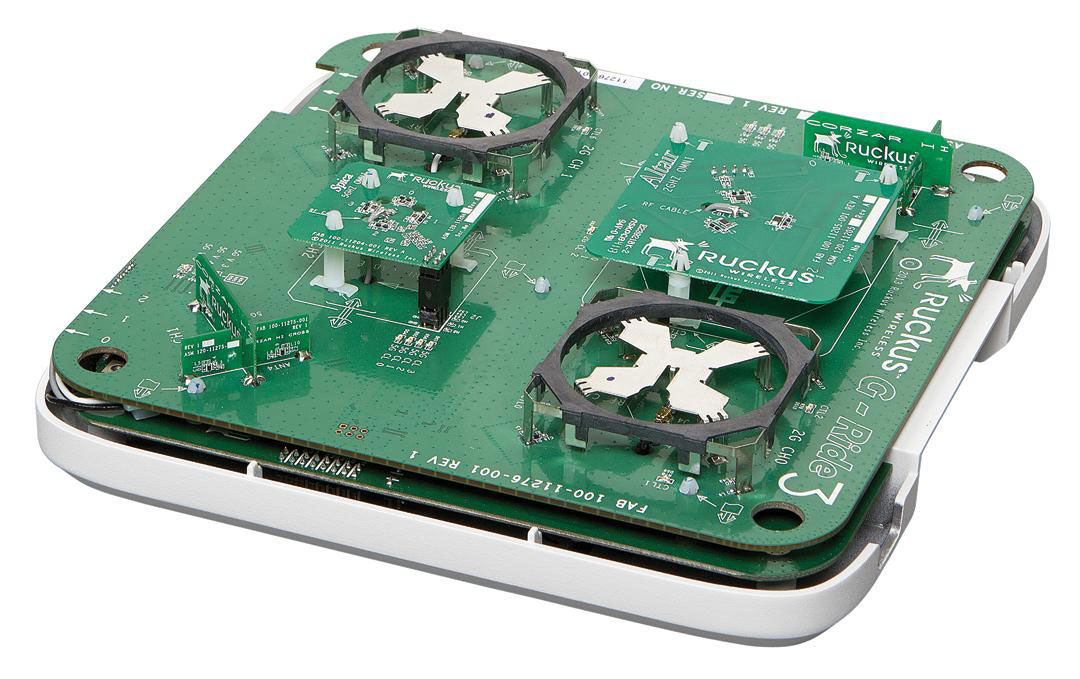

Dual polarized adaptive antennas with 21 antenna elements and over 3000 antenna patterns for ultra-reliability

Concurrent support for HD IPTV, VoIP and data

Support for isochronous, multicast IP video streaming
Four queues per client station

Differentiated services with multiple SSIDs

32 BSSIDs with unique QoS and security policies (8 BSSIDs at 5 GHz)
WPA-PSK (AES), 802.1X support
Zero-IT and Dynamic PSK
Captive portal and guest accounts
RADIUS and Active Directory support

Other Features

Concurrent dual-band (5 GHz/2.4 GHz) support
Backward compatible with legacy 802.11 clients
80 MHz channelization; 256-QAM modulation support; 1300 Mbps PHY rates at 5 GHz
Automatic interference avoidance, optimized for high-density environments
Space Time Block Coding for increased handset performance
Improved Maximum Ratio Combining (MRC) for best-in-class receive sensitivity
Low Density Parity Check (LDPC) for increased data throughput at all ranges
BeamFlex+ (PD-MRC) improves signal reception of mobile devices
Integrated smart antenna array with a thousand unique patterns for ultra reliability
Unmatched Rx sensitivity down to -99 dBm
Either standalone or centrally managed
Integrated NAT and DHCP support
Compatible with 802.3af Power over Ethernet (PoE)
Multicast IP video streaming support
Four software QoS queues per client station
Future support for advanced spectrum analysis
Up to 32 (2.4 GHz) and 8 (5 GHz) BSSIDs with unique QoS and security policies
Wall or ceiling mountable with unobtrusive design
Built in mounting options for fast an easy deployment
WPA-PSK (AES), 802.1X support for RADIUS and AD*
Zero-IT and Dynamic PSK*
Admission control/load balancing*
Band steering and airtime fairness
Captive portal and guest accounts*
SmartMesh Networking*

* when used with the ZoneDirector Smart WLAN controller.

Benefits:

Industry's highest performing three-stream AP
ZoneFlex R700 delivers better performance over competitive three-stream APs

Reduced Wi-Fi interference
Up to 15 dB of interference mitigation and a 50 percent reduction in interference to neighboring APs

No need to upgrade PoE switches
Works under 802.3af power with no limitations requiring no need to upgrade PoE switches

Flexible deployment options
Standalone or controller-based deployment with any of RUCKUS ZoneDirectors

Dual concurrent 3x3:3 MIMO and BeamFlex+
Three spatial streams combined with BeamFlex+ adaptive antenna technology ensures the most throughput out of the total 1300 Mbps available without the client capabilities for transmit beamforming

Adaptive polarization diversity with BeamFlex+ (PD-MRC)
Dual-polarized antennas that are dynamically selected provide better reception for hard to hear clients and more consistent performance as clients constantly change orientation. BeamFlex+ with 802.11ac enables rates at up to 2x the range vs. other vendors

Improved performance to legacy clients
Increases throughput to single and dual-stream clients by combining BeamFlex+, polarization diversity and three radio chains

Best in class channel selection with ChannelFly™
Capacity-driven channel selection predict and automatically selects best performing channel based on statistical, real-time capacity analysis of all RF channels

Deployment:

ZoneFlex R700 Deployment

Specifications:

ZoneFlex R700 Specifications
Physical Characteristics
Power	DC Input: 12 VDC 1.5A PoE: 802.3af compliant
Physical Size	20.3 cm (L), 20.3 cm (W), 5 cm (H) 7.99 in (L), 7.99 in (W), 1.99 in (H)
Weight	1kg (2.25 lbs.)
RF ^(1,2,3)	Adaptive antenna array that provides 3,000+ unique antenna patterns Maximum Transmit Power(1) 24 dBm on 2.4 GHz; 22 dBM on 5 GHz Physical antenna gain: 3 dBi (2.4 and 5GHz) BeamFlex SINR Tx gain(2): up to 6 dB BeamFlex SINR Rx gain: up to 4 dB Interference mitigation: up to 15 dB Minimum Rx sensitivity(3): -99 dBm
Ethernet Ports	2 ports, auto MDX, auto-sensing 10/100/1000 Mbps, RJ-45 Power over Ethernet (802.3af) with Category 5/5e/6 cable
Mounting Options	Electrical wallbox; Standard US and EU single gang wall jack Optional bracket for offset & wall mount
Lock Options	Hidden latching mechanism Kensington Lock Hole T-bar Torx Bracket (902-0108-0000) Torx screw & padlock (sold separately)
Environmental Conditions	Operating Temperature: 32°F (0°C) - 122°F (50°C) Operating Humidity: up to 95% non-condensing
Power Consumption	5W (minimum) 7W (typical) 12.95W (peak)
Performance and Capacity
PHY Data Rates	Up to 450 Mbps (2.4GHz) Up to 1300Mbps (5GHz)
Concurrent Stations	Up to 512
Simultaneous VoIP Clients	Up to 60 (802.11e/WMM support), 30 per radio
Network Architecture
IP	IPv4, IPv6, dual-stack
VLANs	802.1Q (1 per BSSID or dynamic, per user based on RADIUS) Port-based
802.1x for Wired Ports	Authenticator Supplicant
Tunneling	L2TP, PPPoE
Multimedia and Quality of Service
802.11e/WMM	Supported
Software Queues	Per WLAN priority (2), Per traffic type (4), per client
Traffic Classification	Automatic, heuristics and TOS based or VLAN-defined
Rate Limiting	Dynamic per-user or per-WLAN
Management
Deployment Options	Standalone (individually managed) Managed by SmartZone (2.5.1 & above) Managed by ZoneDirector (9.8 & above) Managed by FlexMaster
Configuration	Web User Interface (HTTP/S) CLI (Telnet/SSH), SNMP v1, 2, 3 TR-069 vis FlexMaster
Auto Software Updates	FTP or TFTP, remote auto available
Wi-Fi
Standards	IEEE 802.11a/b/g/n/ac 2.4GHz and 5GHz concurrent operation
Supported Data Rates	802.11ac: 29.3 Mbps - 1300 Mbps (80MHz) 802.11n: 6.5 Mbps - 216.7 Mbps(20MHz) 13.5 Mbps - 450 Mbps (40MHz) 802.11a: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps 802.11b: 11, 5.5, 2 and 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
Radio Chains / Streams	3 x 3:3
Channelization	20 MHz, 40 MHz, and/or 80 MHz
Frequency Band	IEEE 802.11ac: 5.15 - 5.85 GHz IEEE 802.11a/n: 5.15 - 5.85 GHz IEEE 802.11b: 2.4 - 2.484 GHz
Operating Channels	US/Canada: 1-11, Europe ( ETSI X30): 1-13, Japan X41: 1-13 5 GHz channels: Country dependent
BSSIDs	Up to 32 (2.4 GHz) Up to 16 (5 GHz)
Power Save	Supported
Certifications*	WEEE/RoHS compliance EN 60601-1-2 (Medical) Wi-Fi Alliance certified (Pending) UL 2043 plenum rated
Subway and Railroad Certifications	EN50121-1 EMC EN50121-4 Immunity IEC 61373 Shock & Vibration

¹ Max power varies by country setting, band, and MCS rate
² BeamFlex+ gains are statistical system-level effects (including TxBF), translated to enhanced SINR here, and based on observations over time in real-world conditions with multiple APs and many clients
³Rx sensitivity varies by band, channel width, and MCS rate
⁴Refer to price list for current country certifications

Views:

Comparison:

C110 H320 H500 H510 H550 M510 R300 R310 R320 R350 R500 R510 R550 R600 R610 R650 R700 R710 R720 R750 R730 R850

Model:	C110	H320	H500	H510	H550	M510	R300	R310	R320	R350	R500	R510	R550	R600	R610	R650	R700	R710	R720	R750	R730	R850

Description	802.11ac Wave 2 dual-concurrent wall plate with built-in DOCSIS 3.0 cable modem	802.11ac Wave 2 dual-concurrent wall switch with two 10/100MbE ports and BeamFlex+	802.11ac Wave 1 dual-concurrent wall plate with five GbE ports and BeamFlex+	802.11ac Wave 2 dual-concurrent wall switch with five GbE ports and BeamFlex+	Wall-mount Wi-Fi 6 (802.11ax) AP dual-concurrent, five GbE ports, IoT gateway, BeamFlex+	Mobile Indoor 802.11ac Wave 2 2x2:2 Wi-Fi AP with LTE Backhaul	Entry level 802.11n dual-concurrent AP with BeamFlex	Entry level 802.11ac Wave 1 dual-concurrent AP with BeamFlex	Entry level 802.11ac Wave 2 dual-concurrent AP with BeamFlex	Entry level Indoor 802.11ax Wi-Fi 6 dual-concurrent AP with BeamFlex	Mid-range 802.11ac Wave 1 dual-concurrent AP with BeamFlex+	Mid-range 802.11ac Wave 2 dual-concurrent AP with MU-MIMO and BeamFlex+	Mid-range Wi-Fi 6 (802.11ax) dual-concurrent AP with MU-MIMO and BeamFlex+	Mid-range 802.11ac Wave 1 dual-concurrent AP with BeamFlex+	Mid-range 802.11ac Wave 2 dual-concurrent AP with MU-MIMO and BeamFlex+	Mid-range Wi-Fi 6 (802.11ax) dualconcurrent AP with MU-MIMO and BeamFlex+	High-end 802.11ac Wave 1 dual-concurrent AP with BeamFlex+	High-end 802.11ac Wave 2 dualconcurrent AP with MU-MIMO and BeamFlex+	High-end 802.11ac Wave 2 dual-concurrent AP with MU-MIMO, BeamFlex+ and 2.5Gbps backhaul	High-end 802.11ax 4x4 dual concurrent AP with MU-MIMO, BeamFlex+ and 2.5Gbps backhaul	High-end 802.11ax 8x8 dual-concurrent AP with MU-MIMO, BeamFlex+ and 5Gbps backhaul	High-end 802.11ax 8x8 dual-concurrent AP with MU-MIMO, BeamFlex+ and 5Gbps backhaul
Maximum PHY rate	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 150 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	1200 Mbps (5GHz) 574 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	300 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	1200 Mbps (5GHz) 574 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	1200 Mbps (5GHz) 574 Mbps (2.4GHz)	1300 Mbps (5GHz) 450 Mbps (2.4GHz)	1300 Mbps (5GHz) 450 Mbps (2.4GHz)	2400 Mbps (5GHz) 574 Mbps (2.4GHz)	1300 Mbps (5GHz) 450 Mbps (2.4GHz)	1733 Mbps (5GHz) 600 Mbps (2.4GHz)	1733 Mbps (5GHz) 600 Mbps (2.4GHz)	2400 Mbps (5GHz) 1148 Mbps (2.4GHz)	4800 Mbps (5GHz) 1148 Mbps (2.4GHz)	4800 Mbps (5GHz) 1148 Mbps (2.4GHz)
Wi-Fi technology	802.11ac (5GHz) 802.11n (2.4 GHz)	802.11ac (5GHz) 802.11n (2.4 GHz)	802.11ac (5GHz) 802.11n (2.4 GHz)	802.11ac (5GHz) 802.11n (2.4 GHz)	802.11ax (2.4 GHz, 5 GHz) Wi-Fi Certified 6™	802.11ac (5 GHz) 802.11n (2.4 GHz)	802.11n (2.4/5 GHz)	802.11ac (5 GHz) 802.11n (2.4 GHz)	802.11ac (5 GHz) 802.11n (2.4 GHz)	802.11ax (2.4 GHz, 5 GHz) Wi-Fi Certified 6™	802.11ac (5 GHz) 802.11n (2.4 GHz)	802.11ac (5 GHz) 802.11n (2.4 GHz)	802.11ax (2.4 GHz, 5 GHz) Wi-Fi Certified 6™	802.11ac (5 GHz) 802.11n (2.4 GHz)	802.11ac (5 GHz) 802.11n (2.4 GHz)	802.11ax (2.4 GHz, 5 GHz) Wi-Fi Certified 6™	802.11ac (5 GHz) 802.11n (2.4 GHz)	802.11ac (5 GHz) 802.11n (2.4 GHz)	802.11ac (5 GHz) 802.11n (2.4 GHz)	802.11ax (2.4 GHz, 5 GHz) Wi-Fi Certified 6™	802.11ax (2.4 GHz, 5 GHz)	802.11ax (2.4 GHz, 5 GHz) Wi-Fi Certified 6™
Concurrent users	100	100	100	100	512	512	256	100	256	256	512	512	512	512	512	512	512	512	512	1024	1024	1024
Radio chains:streams	2x2:2	5GHz: 2x2:2 MU MIMO 2.4GHz: 1x1:1 SU-MIMO	2x2:2	2x2:2	2x2:2	2x2:2	2x2:2	2x2:2	2x2:2	2x2:2	2x2:2	2x2:2	2x2:2	3x3:3	3x3:3	5GHz: 4x4:4 MU MIMO 2.4GHz: 2x2:2 MU-MIMO	3x3:3	4x4:4 SU-MIMO 4x4:3 MU-MIMO	4x4:4	4x4:4	8x8:8	5GHz: 8x8:8 MU MIMO 2.4GHz: 4x4:4 MU-MIMO
Antenna patterns (per band)	4	4	8	4	16	64	64	64	64	64	64	64	64	512	512	512	3000+	4000+	4000+	4000+	4000+	4000+
Antenna gain	Up to 3dBi	Up to 3dBi	Up to 3dBi	Up to 1dBi	Up to 1dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi	Up to 4dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi	Up to 4dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi	Up to 2dBi	Up to 2dBi
PD-MRC							—	—	—
Rx sensitivity (2.4/5GHz)	-96/-95 dBm	-99/-96 dBm	-96/-95 dBm	-99/-96 dBm	-100 dBm	-101/-95 dBm	-101/-97 dBm	-99 dBm	-101 dBm	-101 dBm	-100/-95 dBm	-103 dBm	-103 dBm	-100/-95 dBm	-100 dBm	-101 dBm	-99 dBm	-104 dBm	-104 dBm	-102 dBm	-103/-101 dBm	-101 dBm
ChannelFly
SmartMesh		—				(in future release)	—	—	—
USB (IoT Ready)		—					—	—	—	—	—			—			—
Ethernet ports	2 x 10/100MbE	2 x 10/100MbE 1 x 1GbE	5 x 10/100MbE	5 x 1GbE	5 x 1GbE	2 x 1GbE, RJ-45	1 x 1GbE	1 x 1GbE	1 x 1GbE	1 x 1GbE	2 x 1GbE	2 x 1GbE	2 x 1GbE	2 x 1GbE	2 x 1GbE	1 x 1GbE 1 x 2.5GbE	2 x 1GbE	2 x 1GbE	1 x 1GbE and 1 x 2.5GbE	1 x 1GbE and 1 x 2.5GbE	1 x 1/2.5/5GbE and 1 x 1GbE	1 x 1/2.5/5GbE and 1 x 1GbE
Integrated BLE/ZigBee	—	—	—	—		—	—	—	—	—	—	—		—	—		—
Unleashed Management			—				—										—				—
Cloud Wi-Fi Management	—		—				—
ZoneDirector Management						—
SmartZone Management
